CXFT-** VGA/HD/USB/Audio/RS232 over optical fibre transmitter

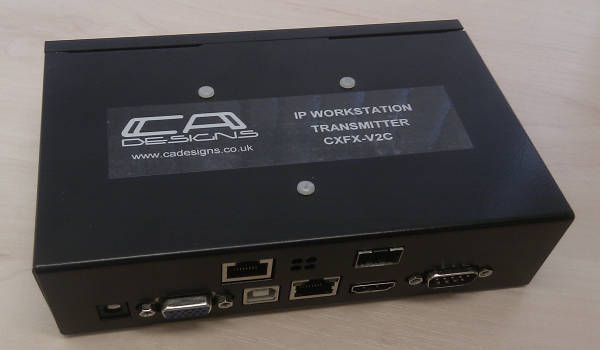

The C.A. Designs IP Workstation Transmitter CXFT-**C is part of a line interface for the transport of most of the commonly used signals from a PC, throughout buildings wired with optical fibre, to remote user locations. The CXFT-** transmitter is designed to work with our CXFR-** receivers.
The video inputs accept most of the video standards in use today. Mouse, keyboard, audio and USB can also be extended using the CXFT-**. This allows devices such as webcams, printers, and USB memory to be remotely located.
Models available:
| Product Code | Video Type | Max Distance | Cable type |
|---|---|---|---|
| CXFT-V1 | VGA only | 100m | Cat5 |
| CXFT-V2 | VGA only | 500m | Multimode fibre |
| CXFT-H1 | HD only | 100m | Cat5 |
| CXFT-H2 | HD only | 500m | Multimode fibre |
For applications requiring further than 500m, we can offer a single-mode fibre version, please contact us for details.
All models provide excellent picture quality with resolutions up to WUXGA (1920 x 1200).
Available connections:
- VGA in - Standard 15 way HDD female
- HD in - Standard HD female
- RS232 - 9 way D male
- USB - Type 'B' connector
- DVI out - Loop through connector for local monitor at PC end (HD versions only)
Power is provided from an external +5V regulated power supply (included).
Click Here for datasheet.
