TP1V Twisted Pair VGA Video Receiver

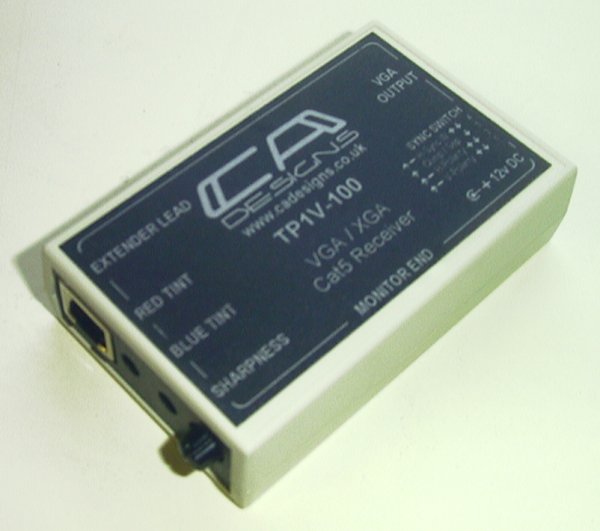

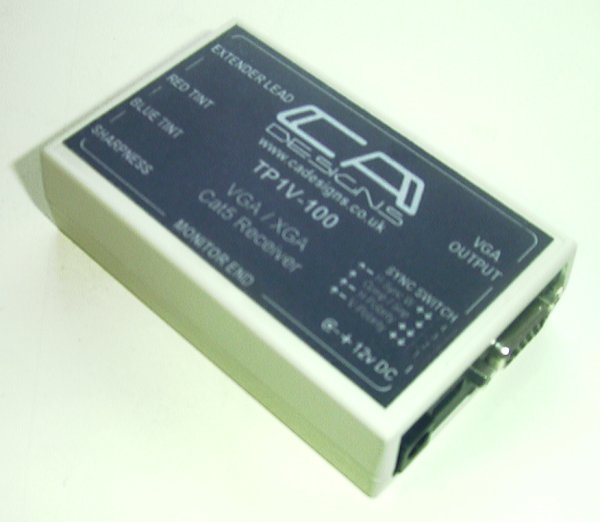

TP1V big picture #1 TP1V big picture #2

The C.A. Designs VGA / SVGA / XGA twisted-pair video receiver TP1V-100 is part of a line interface for the transport of video signals, throughout buildings wired with category 5 cable systems, to remote monitor screens.

A line driving module (eg TP1E/TP3B) transforms the video signal from a PC graphics adaptor into differential form, suitably matched to level 5 UTP or FTP cable.

The line-receiving module TP1V-100 is switchable to either reconstruct SVGA video output (with switchable sync pulse polarity) for VGA monitors, or analogue RGB video output. Balanced differential input amplifiers reduce unwanted common-mode interference and compensate for cable losses (adjustable from 0 up to 100 metres).

Power is supplied from the twisted-pair line (no external PSU is necessary).

The twisted-pair cable used must be category 5 grade or better (depending on length and acceptable quality). Foil-screened cable is recommended for optimum EMC.

Excellent picture quality with resolutions up to 1024x768 (non-interlaced) using level 5 twisted-pair cable is obtainable from:

  • TP1E-0 with a TP1V-100 up to 100m
  • TP3B-0 with a TP1V-100 up to 100m

Click Here for datasheet.
