MON*** Monitors

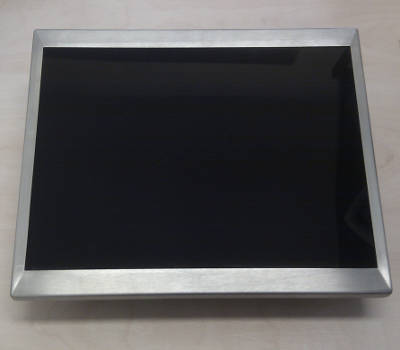

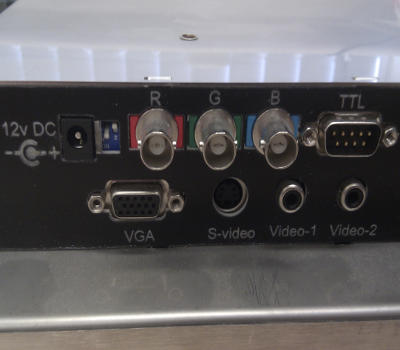

Monitor big picture Monitor inputs big picture

The CA Designs MON*** is a range of LCD monitors in various screen sizes (please contact us for details).

They are especially suitable for non-standard video signals (such as those commonly found on machine tools), and have a simple on-screen menu system to enable the user to set up the monitor for the video input signal.

Video inputs:

  • RGB - 3 x BNC 75 Ohm RGB inputs
  • TTL - 9 way male D for CGA, and other TTL inputs
  • VGA - 15 way female HDD connector for standard VGA/SVGA input
  • S-video - 4 pin mini DIN S-video Y/C input (eg. as used on videos & camcorders)
  • Composite video - 2 x phono composite video inputs

Horizontal sync range = 15 - 100KHz
Vertical sync range = 20 - 200Hz

The monitor requires an external +12V power supply.

Click Here for datasheet.
