KP1 Keypad

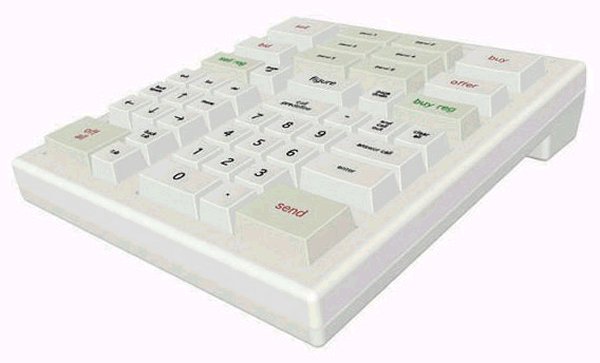

KP1 keypad big picture

The C.A. Designs KP1 keypad is a multi-key (up to 64 keys) customisable keypad, suitable for use within financial dealing environments.  Keys available are single key, double size, quad size, or blanking (for creating gaps to improve the layout).  The unit is fully compliant with UL, FCC and CE standards.

The innovative design is particularly resistant to fluid spills, physical abuse and EMC radiation.

Supported Communications Interfaces:

  • RS232 - 9 pin
  • USB - Serial
  • USB - HID
  • USB - Stream

Audible Alert
The device provides an Audible Alert Capability.  This is from a sounder contained inside the keypad. The keypad beeps on each keypress (this can be turned off). Additionally, the Host computer (eg. a PC) may control the frequency and duration of the sounds produced by the sounder.

Power is derived from the host computer and no additional connections are required.

Click Here for datasheet.
