EQ1A Video Cable Equaliser

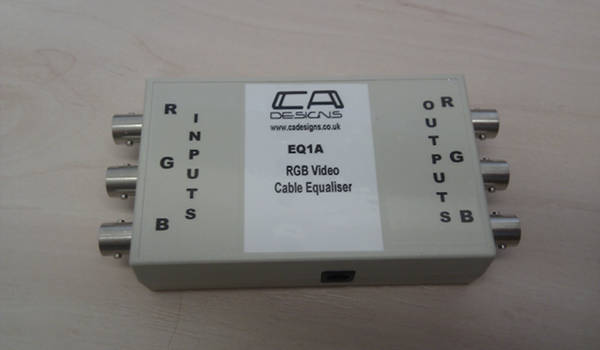

EQ1A big picture

The C.A. Designs EQ1A RGB video cable equaliser is typically used to enable signals from high-resolution video graphics sources to be distributed down long coaxial cables.

The unit will re-condition poor quality video signals.

Features include:

  • Balanced inputs to remove common mode noise (such as mains ripple)
  • Adjustable high frequency compensation to reduce cable losses (picture sharpness)
  • Outputs have individual 75 ohm line driving amplifiers, giving minimum co-channel interaction and optimum performance

External power must be provided from a 12V regulated power supply (eg MP7)

Click Here for datasheet.
